freeradius部署及挑战模式配置

懿曲折扇情
2022-07-02 / 0 评论 / 5 点赞 / 92 阅读 / 1,960 字 / 正在检测是否收录...
温馨提示:
本文最后更新于 2022-07-07,若内容或图片失效,请留言反馈。部分素材来自网络,若不小心影响到您的利益,请联系我们删除。
广告 广告

一、安装 freeradius 3.0

将用户信息配置在RADIUS服务器上,通过RADIUS服务器对用户进行认证。
其特点时认证和授权结合,不能分离,认证成功授权也成功。
该协议定义了基于UDP的RADIUS报文格式及其传输机制,并规定UDP端口1812,1813分别作为了认证,计费端口。
当用户输入用户名和密码,请求发给中继请求服务,将发送一个请求报文给RADIUS服务器,
这时服务器会比对其保存的账户密码,正确与否,将会发送一个接受或者拒绝报文。
通知到用户认证结果,认证成功,发送一个计费开始请求报文,服务器将回应一个开始响应报文。
apt-get install freeradius

二、配置费挑战用户

编辑/etc/freeradius/3.0/users文件,89行下面加入以下内容(89行有用户例子)

admin    Cleartext-Password := "admin"

admin    Cleartext-Password := "click1"

array    Cleartext-Password := "click1"

三、freeradius 挑战认证配置过程:

1.编辑/etc/freeradius/3.0/sites-enabled/default 文件中加入下面这段

ip根据自己的环境去修改

server foo {
    listen {
            ipaddr = 192.168.120.218
            port = 2000
            type = auth
    }
    listen {
            ipaddr = 182.16.10.201
            port = 2000
            type = auth
    }
    authorize {
        update {
        control:Auth-Type := perl
        }
        perl
    }
    authenticate {
        perl
    }
    client private-network-1 {
            ipaddr          = 192.168.120.0/24
            secret          = testing123
    }
}

2. 把附件 perl 放到 /etc/freeradius/3.0/mods-enabled/ 并加 777 权限, chown -R root:root perl

chown -R root:root perl

perl文件内容如下:

# -*- text -*-
#
#  $Id: fa04cdabb71767050aaa0664da792fd6086adb19 $

#  Persistent, embedded Perl interpreter.
#
perl {
        #
        #  The Perl script to execute on authorize, authenticate,
        #  accounting, xlat, etc.  This is very similar to using
        #  'rlm_exec' module, but it is persistent, and therefore
        #  faster.
        #
        filename = /etc/freeradius/3.0/perl_otp.pl

        #
        #  Options which are passed to the Perl interpreter.
        #  These are (mostly) the same options as are passed
        #  to the "perl" command line.
        #
        #  The most useful flag is "-T".  This sets tainting on.  And
        #  as of 3.0.18, makes it impossible to leverage bad
        #  User-Names into local command execution.
        #
        perl_flags = "-T"

        #
        #  The following hashes are given to the module and
        #  filled with value-pairs (Attribute names and values)
        #
        #  %RAD_CHECK               Check items
        #  %RAD_REQUEST             Attributes from the request
        #  %RAD_REPLY               Attributes for the reply
        #  %RAD_REQUEST_PROXY       Attributes from the proxied request
        #  %RAD_REQUEST_PROXY_REPLY Attributes from the proxy reply
        #
        #  The interface between FreeRADIUS and Perl is strings.
        #  That is, attributes of type "octets" are converted to
        #  printable strings, such as "0xabcdef".  If you want to
        #  access the binary values of the attributes, you should
        #  call the Perl "pack" function.  Then to send any binary
        #  data back to FreeRADIUS, call the Perl "unpack" function,
        #  so that the contents of the hashes are printable strings.
        #
        #  IP addresses are sent as strings, e.g. "192.0.2.25", and
        #  not as a 4-byte binary value.  The same applies to other
        #  attribute data types.
        #
        #  Attributes of type "string" are copied to Perl as-is.
        #  They are not escaped or interpreted.
        #
        #  The return codes from functions in the perl_script
        #  are passed directly back to the server.  These
        #  codes are defined in mods-config/example.pl
        #

        # You can define configuration items (and nested sub-sections) in perl "config" section.
        # These items will be accessible in the perl script through %RAD_PERLCONF hash.
        # For instance: $RAD_PERLCONF{'name'} $RAD_PERLCONF{'sub-config'}->{'name'}
        #
        #config {
        #       name = "value"
        #       sub-config {
        #               name = "value of name from config.sub-config"
        #       }
        #}

        #
        #  List of functions in the module to call.
        #  Uncomment and change if you want to use function
        #  names other than the defaults.
        #
        func_authenticate = authenticate
        func_authorize = authorize
        #func_preacct = preacct
        #func_accounting = accounting
        #func_checksimul = checksimul
        #func_pre_proxy = pre_proxy
        #func_post_proxy = post_proxy
        #func_post_auth = post_auth
        #func_recv_coa = recv_coa
        #func_send_coa = send_coa
        #func_xlat = xlat
        #func_detach = detach

        #
        #  Uncomment the following lines if you wish
        #  to use separate functions for Start and Stop
        #  accounting packets. In that case, the
        #  func_accounting function is not called.
        #
        #func_start_accounting = accounting_start
        #func_stop_accounting = accounting_stop
}

3. 把 perl_otp.pl 放到 /etc/freeradius/3.0/ 并加 777 权限

chown -R freerad:freerad perl_otp.pl

/etc/freeradius/3.0/mods-enabled/
chown -R freerad:freerad perl_otp.pl

perl_otp.pl文件内容如下:

#
#  This program is free software; you can redistribute it and/or modify
#  it under the terms of the GNU General Public License as published by
#  the Free Software Foundation; either version 2 of the License, or
#  (at your option) any later version.
#
#  This program is distributed in the hope that it will be useful,
#  but WITHOUT ANY WARRANTY; without even the implied warranty of
#  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#  GNU General Public License for more details.
#
#  You should have received a copy of the GNU General Public License
#  along with this program; if not, write to the Free Software
#  Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301, USA
#
#  Copyright 2002  The FreeRADIUS server project
#  Copyright 2002  Boian Jordanov <bjordanov@orbitel.bg>
#

#
# Example code for use with rlm_perl
#
# You can use every module that comes with your perl distribution!
#
# If you are using DBI and do some queries to DB, please be sure to
# use the CLONE function to initialize the DBI connection to DB.
#

#use strict;
use warnings;

# use ...
use Data::Dumper;

# Bring the global hashes into the package scope
our (%RAD_REQUEST, %RAD_REPLY, %RAD_CHECK, %RAD_STATE);

# This is hash wich hold original request from radius
#my %RAD_REQUEST;
# In this hash you add values that will be returned to NAS.
#my %RAD_REPLY;
#This is for check items
#my %RAD_CHECK;
# This is the session-sate
#my %RAD_STATE;
# This is configuration items from "config" perl module configuration section
#my %RAD_PERLCONF;

# Multi-value attributes are mapped to perl arrayrefs.
#
#  update request {
#    Filter-Id := 'foo'
#    Filter-Id += 'bar'
#  }
#
# This results to the following entry in %RAD_REQUEST:
#
#  $RAD_REQUEST{'Filter-Id'} = [ 'foo', 'bar' ];
#
# Likewise, you can assign an arrayref to return multi-value attributes

#
# This the remapping of return values
#
use constant {
        RLM_MODULE_REJECT   => 0, # immediately reject the request
        RLM_MODULE_OK       => 2, # the module is OK, continue
        RLM_MODULE_HANDLED  => 3, # the module handled the request, so stop
        RLM_MODULE_INVALID  => 4, # the module considers the request invalid
        RLM_MODULE_USERLOCK => 5, # reject the request (user is locked out)
        RLM_MODULE_NOTFOUND => 6, # user not found
        RLM_MODULE_NOOP     => 7, # module succeeded without doing anything
        RLM_MODULE_UPDATED  => 8, # OK (pairs modified)
        RLM_MODULE_NUMCODES => 9,  # How many return codes there are
        RLM_MODULE_CHALLENGE => 11,  # How many return codes there are
};

# Same as src/include/log.h
use constant {
        L_AUTH         => 2,  # Authentication message
        L_INFO         => 3,  # Informational message
        L_ERR          => 4,  # Error message
        L_WARN         => 5,  # Warning
        L_PROXY        => 6,  # Proxy messages
        L_ACCT         => 7,  # Accounting messages
        L_DBG          => 16, # Only displayed when debugging is enabled
        L_DBG_WARN     => 17, # Warning only displayed when debugging is enabled
        L_DBG_ERR      => 18, # Error only displayed when debugging is enabled
        L_DBG_WARN_REQ => 19, # Less severe warning only displayed when debugging is enabled
        L_DBG_ERR_REQ  => 20, # Less severe error only displayed when debugging is enabled
};

#  Global variables can persist across different calls to the module.
#
#
#       {
#        my %static_global_hash = ();
#
#               sub post_auth {
#               ...
#               }
#               ...
#       }

#func_authenticate = authenticate;
#func_authorize = authorize;
# Function to handle authorize
sub authorize {
        # For debugging purposes only
#       &log_request_attributes;

        # Here's where your authorization code comes
        # You can call another function from here:
        &test_call;

        return RLM_MODULE_OK;
}

# Function to handle authenticate
sub authenticate {
        # For debugging purposes only
#       &log_request_attributes;

        if ($RAD_REQUEST{'User-Name'} =~ /^otp_test/i) {
                if($RAD_REQUEST{'User-Password'} =~ /hahaha/i){
                    $RAD_REPLY{'Reply-Message'} = "accept after challenged";
                    return RLM_MODULE_OK;
                }else{
                    $RAD_REPLY{'Reply-Message'}        = "hahahaha";
                    $RAD_CHECK{'Response-Packet-Type'} = "Access-Challenge";
                }
                return RLM_MODULE_HANDLED;

        } else {
                # Accept user and set some attribute
                if (&radiusd::xlat("%{client:group}") eq 'UltraAllInclusive') {
                        # User called from NAS with unlim plan set, set higher limits
                        $RAD_REPLY{'h323-credit-amount'} = "1000000";
                } else {
                        $RAD_REPLY{'h323-credit-amount'} = "100";
                }
                return RLM_MODULE_OK;
        }
}

# Function to handle preacct
sub preacct {
        # For debugging purposes only
#       &log_request_attributes;

        return RLM_MODULE_OK;
}

# Function to handle accounting
sub accounting {
        # For debugging purposes only
#       &log_request_attributes;

        # You can call another subroutine from here
        &test_call;

        return RLM_MODULE_OK;
}

# Function to handle checksimul
sub checksimul {
        # For debugging purposes only
#       &log_request_attributes;

        return RLM_MODULE_OK;
}

# Function to handle pre_proxy
sub pre_proxy {
        # For debugging purposes only
#       &log_request_attributes;

        return RLM_MODULE_OK;
}

# Function to handle post_proxy
sub post_proxy {
        # For debugging purposes only
#       &log_request_attributes;

        return RLM_MODULE_OK;
}

# Function to handle post_auth
sub post_auth {
        # For debugging purposes only
#       &log_request_attributes;

        return RLM_MODULE_OK;
}

# Function to handle xlat
sub xlat {
        # For debugging purposes only
#       &log_request_attributes;

        # Loads some external perl and evaluate it
        my ($filename,$a,$b,$c,$d) = @_;
        &radiusd::radlog(L_DBG, "From xlat $filename ");
        &radiusd::radlog(L_DBG,"From xlat $a $b $c $d ");
        local *FH;
        open FH, $filename or die "open '$filename' $!";
        local($/) = undef;
        my $sub = <FH>;
        close FH;
        my $eval = qq{ sub handler{ $sub;} };
        eval $eval;
        eval {main->handler;};
}

# Function to handle detach
sub detach {
        # For debugging purposes only
#       &log_request_attributes;
}

#
# Some functions that can be called from other functions
#

sub test_call {
        # Some code goes here
}

sub log_request_attributes {
        # This shouldn't be done in production environments!
        # This is only meant for debugging!
        for (keys %RAD_REQUEST) {
                &radiusd::radlog(L_DBG, "RAD_REQUEST: $_ = $RAD_REQUEST{$_}");
        }
}

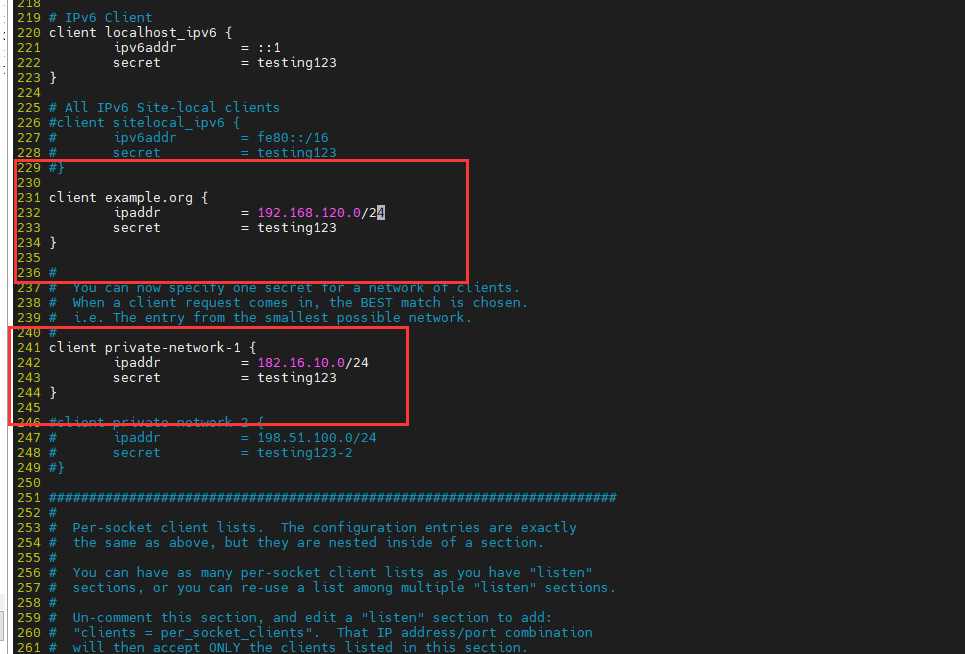

4.修改client.conf文件

在目录 /etc/freeradius/3.0下,修改client.conf文件

image-1657185429696

5. service freeradius restart

测试挑战用户
otp_test/click1
挑战密码:
hahahaha
配置挑战的时候端口号不是1812,而是2000
